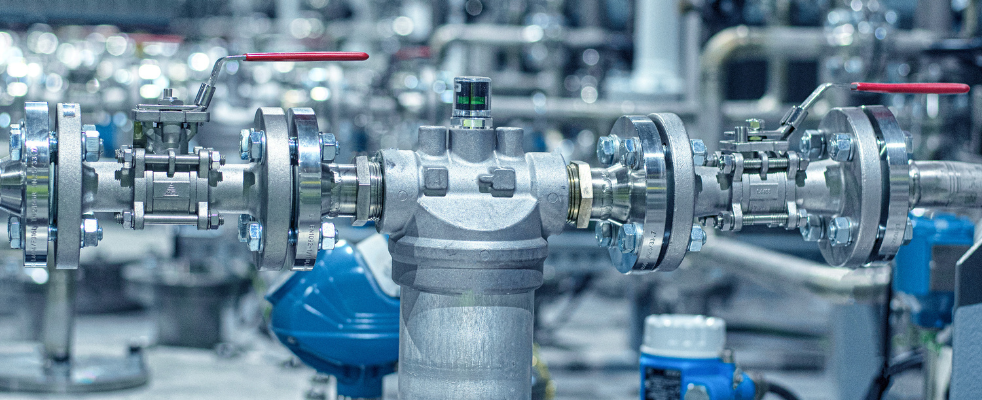

Valves for the Petrochemical Industry

In the chemical and petrochemical industries, valves are more than just flow controllers—they're critical to safety, efficiency, and operational stability. However, choosing the wrong valve for a specific process can lead to common but costly issues: leaks, system downtime, premature wear, and even safety risks. Missteps such as improper sizing, incorrect material selection, or neglecting the chemical compatibility of media often result in operational inefficiencies and increased maintenance costs.

This guide explores the various types of valves used across chemical sectors, focusing on how to avoid these pitfalls by understanding the strengths and applications of each valve type used in three chemical industries:

• The general chemical industry converts raw materials like minerals, air, and water into products such as fertilizers, pharmaceuticals, and polymers.

• The petrochemical industry, a subset of the chemical industry that transforms petroleum and natural gas into key materials like ethylene, propylene, and benzene for plastics and synthetics.

• The specialty chemical industry where customized, performance-driven chemicals, such as adhesives, coatings, and pharmaceutical ingredients are produced and focus on niche applications where specific functionality is key.

Whether you're a seasoned industry professional or a curious newcomer, understanding how to match the right valve to the right application can prevent costly mistakes and improve both safety and efficiency. Use this guide to better navigate the complexities of these demanding environments and make informed decisions that support long-term operational success.

Different Types of Valves Used in Petrochemical Industries

Let’s dive into different types of valves used in the chemical industry, including their unique designs, key features, and the applications they’re best suited for. Whether the goal is rapid shutoff, automated control, or resistance to extreme temperatures and aggressive chemicals, there’s a valve solution that can provide reliable operation in the most demanding chemical processes.

Plug Valves

Plug valves are an excellent choice for petrochemical applications due to their robust design, high-pressure and high-temperature capabilities, and reliable isolation. Their simple 90-degree operation provides quick shutoff and minimizes leakage, making them ideal for demanding applications like severe service and slurry handling, where rapid flow control is essential.

These valves consist of a valve body, a cylindrical or tapered plug with a hollow passage, and a stem. When rotated, the plug aligns the passage with the inlet and outlet, allowing fluid to flow freely. Plug valves come in various forms, including metal-seated and lined versions, offering versatility for challenging environments.

Ball Valves

Ball valves are ideal for chemical and petrochemical applications, offering airtight sealing, rapid actuation, and seamless automation integration. These quarter-turn valves control fluid flow with a rotating ball that aligns or misaligns its ports with the valve’s inlet and outlet, effectively sealing the flow when rotated.

Their tight seal is crucial for handling corrosive, volatile, or aggressive fluids, providing safety and precision in sensitive processes. Ball valves also perform well in high-pressure environments, making them versatile for controlling gases, liquids, and slurries.

Their robust construction makes them suitable for a range of challenging applications. Metal ball valves, for instance, offer excellent resistance to high temperatures, corrosion, and abrasion, making them a popular choice for chemical synthesis and petrochemical refining, where harsh chemicals and elevated pressures are common. For even greater protection against aggressive chemicals, lined ball valves incorporate materials like PTFE or PFA, providing enhanced corrosion resistance—ideal for handling caustic solutions, acids, and other hazardous substances in processes like chlor-alkali production. Metal-seated ball valves, on the other hand, are built to withstand extreme temperatures and abrasive media, making them a reliable option for demanding applications like slurry transport or polymer production, where wear resistance is critical.

Butterfly Valves

Butterfly valves are widely used in petrochemical industries for their compact design, fast operation, and suitability for large-diameter pipelines. Their simple quarter-turn mechanism can be ideal for throttling and isolation in both low-pressure and high-pressure systems.

These valves consist of a circular disc positioned in the center of the pipe, connected to a stem. When the valve is turned, the disc rotates perpendicular to or parallel with the flow, allowing for precise regulation or full closure. Butterfly valves are particularly advantageous in systems requiring frequent operation or rapid shutoff, thanks to their minimal footprint and low torque requirements.

The valve’s compact design allows for a smooth flow path, minimizing turbulence and pressure drop, which reduces energy consumption and wear on the valve. With lined butterfly valves, featuring PTFE or rubber linings, they offer additional protection in highly corrosive environments making them suitable for acids, caustics, and abrasive media. High-performance butterfly valves, often metal-seated, provide durability in high-pressure, high-temperature conditions, making them ideal for demanding applications in chemical processing and petrochemical refining.

Pinch Valves

Pinch Valves are a great fit for chemical and petrochemical applications due to the valve's straight-through flow path, low maintenance cost, minimal risk of contamination, and low energy consumption.

Pinch valves consist of a valve body, an internal cylindrical rubber sleeve, and end connections. These valves are typically operated by air or pneumatic controls, or in some cases, by mechanical components. When activated, the air pressure or mechanical system compresses the rubber sleeve, effectively and rapidly closing off the flow of media.

Pinch valves are ideal for handling slurries and granular materials, such as slurry transport, wastewater management, and abrasive material handling. Thanks to the durable liner material, they are particularly well-suited for abrasive and corrosive media.

The valve's straight-through flow path helps the media pass through with minimal turbulence and friction, reducing the risk of clogging. Additionally, replacing the rubber liner is straightforward, contributing to low maintenance costs and minimal contamination risk. Pinch valves also offer low energy consumption, making them an efficient and reliable choice for many industrial processes.

Diaphragm Valves

Diaphragm valves are ideal for handling corrosive or aggressive media in areas where sanitation and contamination is a concern.

Diaphragm valves consist of a valve body, a flexible PTFE or rubber membrane, a stem, and a compressor. The membrane seals against the valve seat, controlling the flow of gases and fluids. Due to the flexibility of the membrane, diaphragm valves can adapt to changes in temperature and pressure, maintaining a consistent and reliable seal. This tight seal prevents hazardous materials from mixing with other substances or leaking, significantly reducing the risk of contamination and providing safe and efficient operations.

In petrochemical industries, the PTFE membrane on the diaphragm valves resists chemical attack and degradation. Diaphragm valves can also provide precise flow control, which helps maintain sanitary conditions in sensitive processes. These features make them an excellent choice for applications such as drainage, chemical processing, dosing, and filtration.

Knife gate Valves

Knife gate valves perform well in petrochemical applications when flow restriction or clogging may be a concern. They also make an excellent choice when a straight-line flow is desired.

Knife gate valves consist of a valve body, a round or rectangular gate (or plate), a pneumatic cylinder, and a sealing mechanism. These valves are designed with a narrow profile. The thin gate "slices" through media, allowing the valve to handle thick, viscous fluids with ease.

Knife gate valves are particularly effective when dealing with challenging media such as slurries, heavy oils, or wastewater. Their ability to cut through solids makes them a go-to solution for applications where traditional valves would struggle to prevent clogging.

In addition to fully open or closed positions, knife gate valves can also be used to regulate or modulate the flow of media, offering flexibility in managing process conditions.

Slide Gate Valves

Slide gate valves are well-suited for dry bulk and granular material applications in chemical and petrochemical facilities, offering a simple yet effective solution for managing the flow of powders, pellets, or abrasive solids. These valves feature a flat, sliding gate mechanism that moves horizontally to control the flow of media through the valve body.

Designed for on-off operation in gravity-fed or low-pressure pneumatic conveying systems, slide gate valves deliver a reliable seal and quick shutoff. Their straightforward design minimizes clogging and wear, even in abrasive service. Many slide gates also feature replaceable wear components, helping to extend service life in harsh environments.

Slide gate valves are commonly used in silo discharge, hopper isolation, and powder handling operations especially where precision and minimal leakage are essential. Available in manual, pneumatic, and electric actuation styles, they can be tailored to fit a wide range of material handling needs across chemical production lines.

Vacuum Relief Valves

Vacuum relief valves play a critical safety role in chemical and petrochemical operations, protecting storage tanks, reactors, and processing vessels from structural damage caused by vacuum conditions. These valves are designed to admit air or inert gas into a vessel when internal pressure falls below a safe threshold, maintaining structural integrity and process stability.

Constructed with corrosion-resistant materials like stainless steel or PTFE-lined components, vacuum relief valves are built to withstand exposure to aggressive chemicals, vapors, and environmental factors. They are typically spring-loaded or weight-loaded, with a precisely calibrated set point to ensure they activate only when necessary.

Vacuum relief valves are essential in systems subject to rapid cooling, liquid transfers, or pump-outs, any of which can generate a vacuum. By automatically equalizing pressure, these valves help prevent implosions and maintain safe, uninterrupted operations in sensitive chemical processes.

Automated Valves

Automated valves are ideal for applications requiring frequent adjustments or where safety is a top priority, as they eliminate the need for manual intervention. They excel in high-precision environments where variables like pressure, temperature, or flow rate need constant monitoring and control.

Automated valves combine the reliability of traditional valves with advanced control systems to provide precise, automated regulation of process flows. These valves are equipped with electric, pneumatic, or hydraulic actuators, allowing them to be operated remotely and integrated into complex control systems, beneficial to many hazardous petrochemical processes.

Automated valves are commonly used in tasks such as flow control, isolation, and emergency shutoff. Their ability to respond quickly to system changes makes them invaluable in preventing accidents, reducing downtime, and optimizing production efficiency. Additionally, they offer scalability—ranging from small, automated valve units for individual equipment to large networked systems for entire facilities.

With their versatility and integration into modern control systems, automated valves are key to providing process accuracy, safety, and overall operational efficiency.

Types of Valves Used in the Petrochemical Industry

• Plug Valves

• Ball valves

• Butterfly valves

• Pinch valves

• Diaphragm Valves

• Knife Gate Valves

• Slide Gate Valves

• Vacuum Relief Valves
• Automated Valves



Which Is Best for Me?

Selecting the right valve for your petrochemical processes involves careful consideration of several factors, including pressure requirements, operating temperature, media characteristics, and the desired functionality. The valve body materials, including the choice of liner, seats, and seals, also play a significant role in ensuring optimal performance.

Both industries share many common processes, such as wastewater management, fluid transfer, and distillation, where specialized valves are crucial. However, the best choice often depends on the specific application.

Consider this checklist when selecting chemical valves:

• Pressure Requirements: What is the maximum pressure for your application?

• Temperature Tolerance: What are the operating temperatures?

• Media Characteristics: Is the media abrasive, corrosive, or viscous?

• Flow Control Needs: Are you looking for throttling, isolation, or regulation?

• Material Considerations: Do you require specific materials (e.g., metal alloys, lined options)?

Knowing these data points up front can help an experienced technician begin the process of properly selecting the best valve for your application.

Consider this: When choosing the material of your valve body, high alloy valves, like Hastelloy or Inconel, are excellent for corrosive environments. These alloys are engineered to resist specific chemicals and endure harsh environments, but their advantages may be wasted in less demanding applications such as water services. Understanding these distinctions will help you make informed choices.

For expert guidance tailored to your specific needs, consult our team to ensure you select the right valve for your application.

Get Started Now

Key Factors for Long-Term Valve Reliability

Achieving long-term reliability for your petrochemical valves requires maintaining operational efficiency and safety throughout their service life. Here are key factors that contribute to sustained valve performance:

Quality of Materials

The durability and performance of valves heavily depend on the materials used in their construction. Selecting high-quality materials that can withstand the specific conditions of your application is fundamental. Stainless steel, high alloys, and specially coated materials can significantly enhance valve longevity in hazardous environments.

Proper Selection and Size

Understanding the flow requirements, pressure ratings, and the nature of the media is critical to ensure the valve can handle the operational demands. Oversizing or under sizing valves can lead to inefficiencies and premature wear. Working with an experienced technician can help ensure you’re selecting a valve that can seamlessly fit into your process.

Proper Installation

Correct installation is essential for optimal valve performance. Following manufacturer guidelines helps prevent issues like leaks or mechanical failures, while proper alignment within the piping system minimizes stress and wear. Engaging an engineer before installation can also help you avoid costly errors and ensure the valve functions as intended.

Regular Maintenance

Consistent maintenance, including routine inspections, cleaning, and lubrication, is vital for prolonging valve life. Following the manufacturer's maintenance recommendations can help identify potential problems early, allowing for timely interventions and repairs. Preventive maintenance practices can also significantly reduce the chance of unexpected failures.

Operational Conditions

Understanding the operational conditions in which valves will be used is critical for maintaining reliability. Factors such as pressure spikes, temperature variations, and the presence of abrasive or corrosive materials can impact valve performance and should be taken into consideration prior to installation. Regular monitoring and adjustments based on these conditions can help valves continue to function optimally.

Petrochemical Valves: Key Takeaways

When making a decision on selecting the right valve for your chemical and petrochemical processes, these key takeaways will help you make the right choice when selecting valves for performance, safety, and longevity:

• There are multiple situations where valve types cross over in the chemical and petrochemical industries. Valves that are used in one industry may have a role in the other as well.

• Consider factors like pressure requirements, temperature tolerance, media characteristics, flow control needs, and material consideration when selecting a valve for your application.

• For long-term reliability: use high-quality materials suited to your application; select the right size valve; ensure proper installation; maintain it regularly; and monitor its performance under your operational conditions.

• Consulting with experts can help you navigate the complexities of valve selection, facilitating optimal performance and reliability.
